Capilla Peak Repeater and Site
The Capilla Peak UHF repeater
is located at an elevation of 9,303 feet East of Interstate 25 near the
Manazano Mountains. Coverage is excellent in many locations like: Socorro,
Belen, Los Lunas, Edgewood, Estancia, Mountainair, Moriarty. Additionally
in great coverage to south and western Albuquerque like Rio Rancho and west
along I40 to Grants. The antenna is a Decibel Products Omni Directional
Antenna (DB-408) with 8db gain at the top of the 65 foot tower. The repeater
is a Motorola MTR3000 Digital Mobile Radio(DMR). The site is difficult to
get to in the winter, with 4 feet of snow on the ground very common, so
reliability is the goal. More information about our Digital repeaters can
be found on DMR
Montana.
Repeater Location: 34.696964
-106.404872
70 CM Repeater Specifications:
Repeater Receive Frequency (Input):
448.2500 Mhz
Repeater Transmit Frequency (Output):
443.2500 Mhz
Transmit Output Power: 100 Watts
Effective Radiated Power: 325 Watts
Color Code: 1
Static Primary Talk Group Time Slot
2: MPRG 1, Talk Group Number 31301
Static Secondary Talk Groups Time Slot
1: MPRG 2 Talk Group Number 31302,
NM Statewide TG# 3135, MPRG Cluster TG# 8
ALL OTHER DYNAMIC TALK GROUPS: TIME SLOT 1 ONLY
Repeater Dashboard: Capilla
Peak UHF Repeater BrandMeister Dashboard
New Mexico DMR Live Map: Live
BrandMeister DMR Map
Call Sign: WR7HLN (Mac Pass Repeater Group)
Antenna Gain: 8.0 Db
Antenna Pattern: Omnidirectional
Backup Power: Generator
Time Out Timer: 3 minutes resets on input signal drop

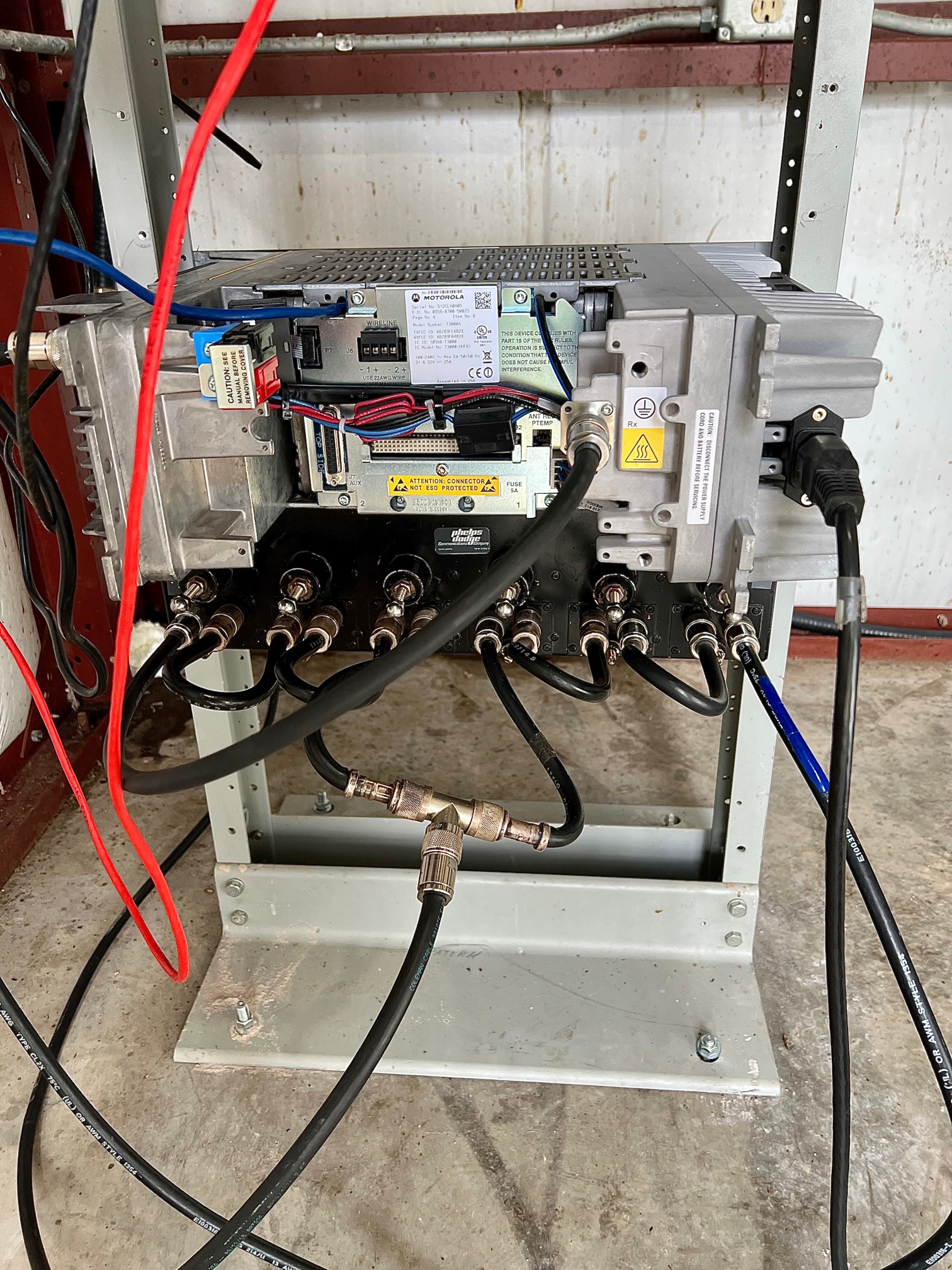

MTR3000 Repeater Rear Photograph

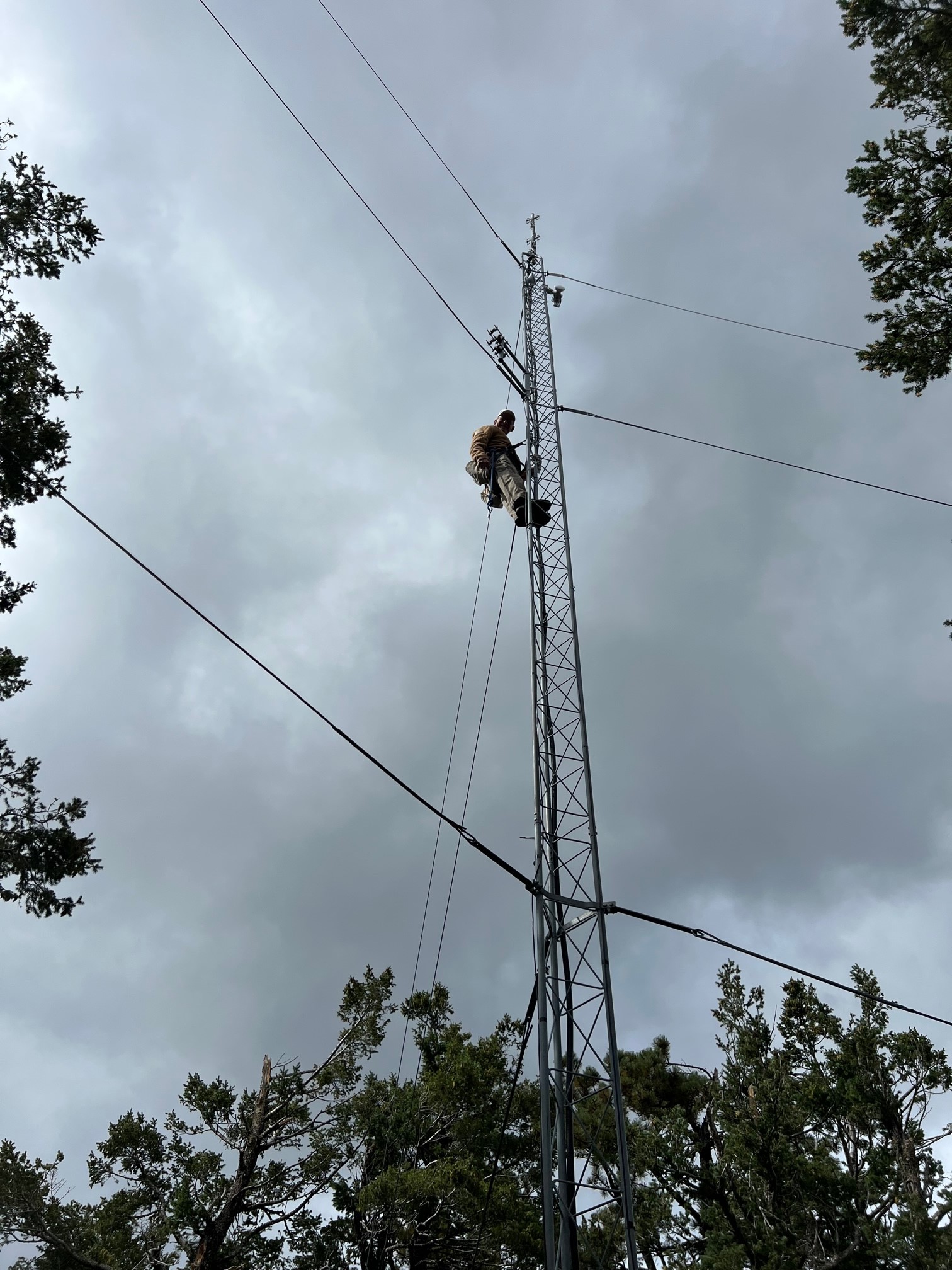

Tower and Antenna Photograph
Capilla Propagation Map
