Great Falls Repeater and Site
The Great Falls repeater was
installed in June of 2019. It is located on a ridge north of Great Falls
called Black Horse. The site elevation is at 3,900 feet and has a 50 foot
tower. The UHF repeater consists of a Motorola SLR5700 repeater operating
at 50 watts. The repeater transmits and receives into a DB Products DB-408
antenna located at about 50 feet above ground. The repeater works in Great
Falls, Cascade, Dearborne and many other locations North and South along
I15. East and West from Simms to Raynesford. This repeater is permanently
linked to the BrandMeister DMR network. More information on the Digital
DMR use can be found on our Digital Website at DMR Montana.
Repeater Location: 47.595585
-111.339691
70 CM Repeater Specifications:
Repeater Receive Frequency (Input):
444.2000 Mhz
Repeater Transmit Frequency (Output):
449.2000 Mhz
Transmit Output Power: 50 Watts
Effective Radiated Power: 250 Watts
DMR Color Code: 2
Static Primary Talk Group Time Slot
2: MPRG 1, Talk Group Number 31301
Static Secondary Talk Groups Time Slot
1: MPRG 2 Talk Group Number 31302,
MPRG Cluster TG# 8, MT Statewide TG# 3130 on Saturday 7-8 PM
ALL OTHER DYNAMIC TALK GROUPS: TIME SLOT 1 ONLY
Repeater Dashboard: Great Falls
UHF Repeater BrandMeister Dashboard
Call Sign: WR7HLN (Mac Pass Repeater Group)
Antenna Gain: 8 Db
Antenna Pattern: Omnidirectional
Backup Power: Generator
Time Out Timer: 3 minutes resets on input signal drop

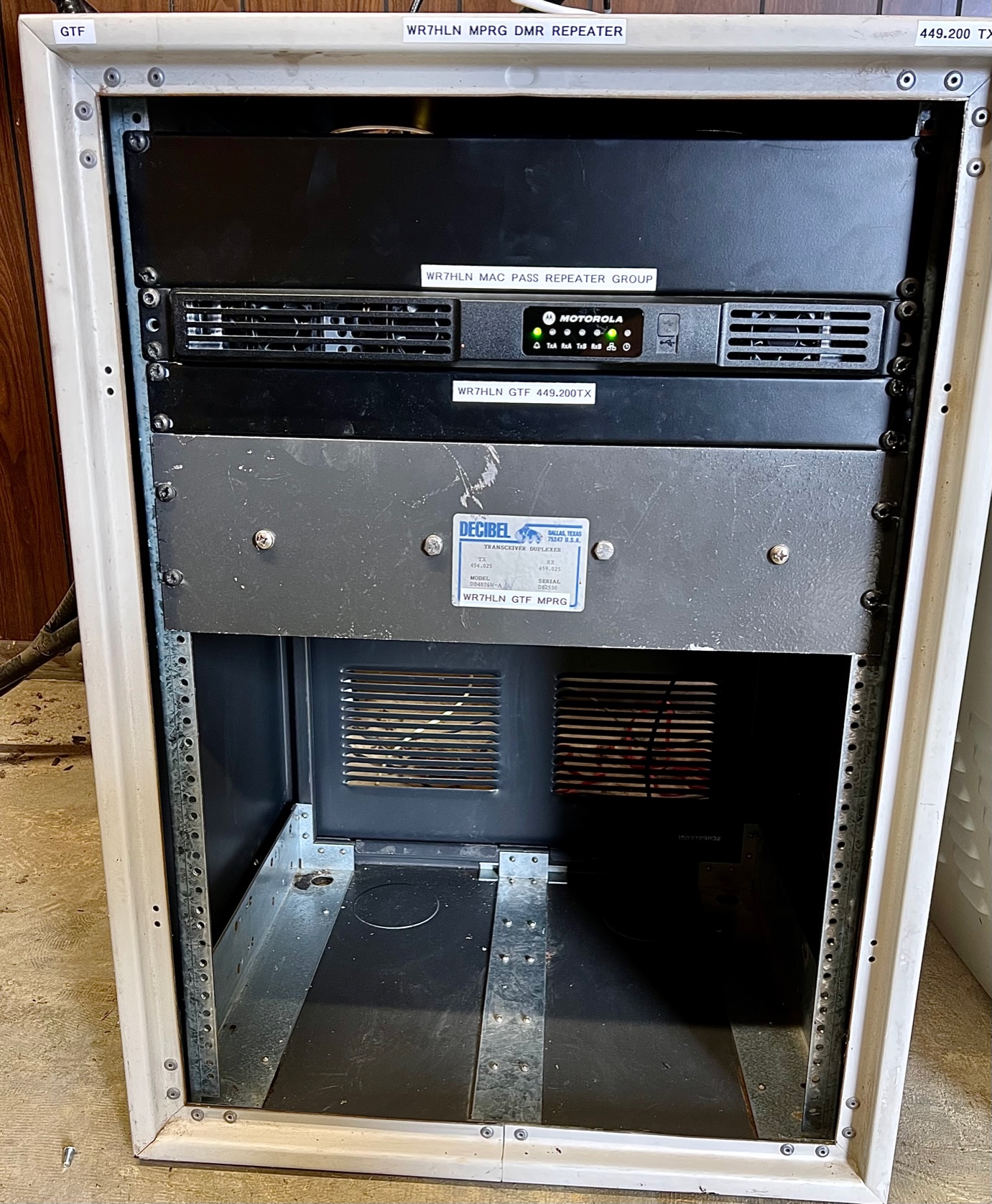

Repeater Photograph
Tower and Antenna Photograph
Great Falls Propogation Map
