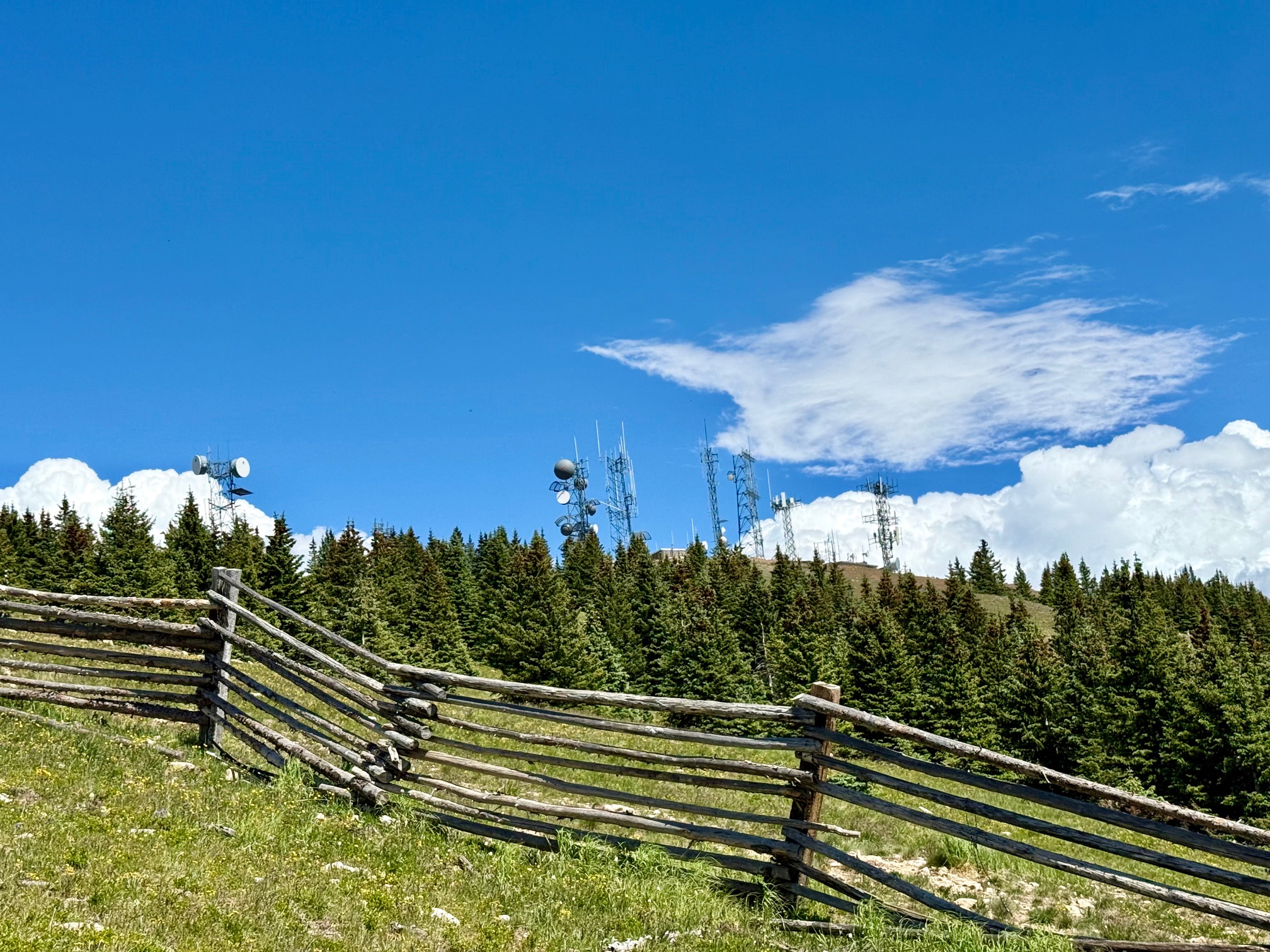

Tesuque Peak Repeater and Site

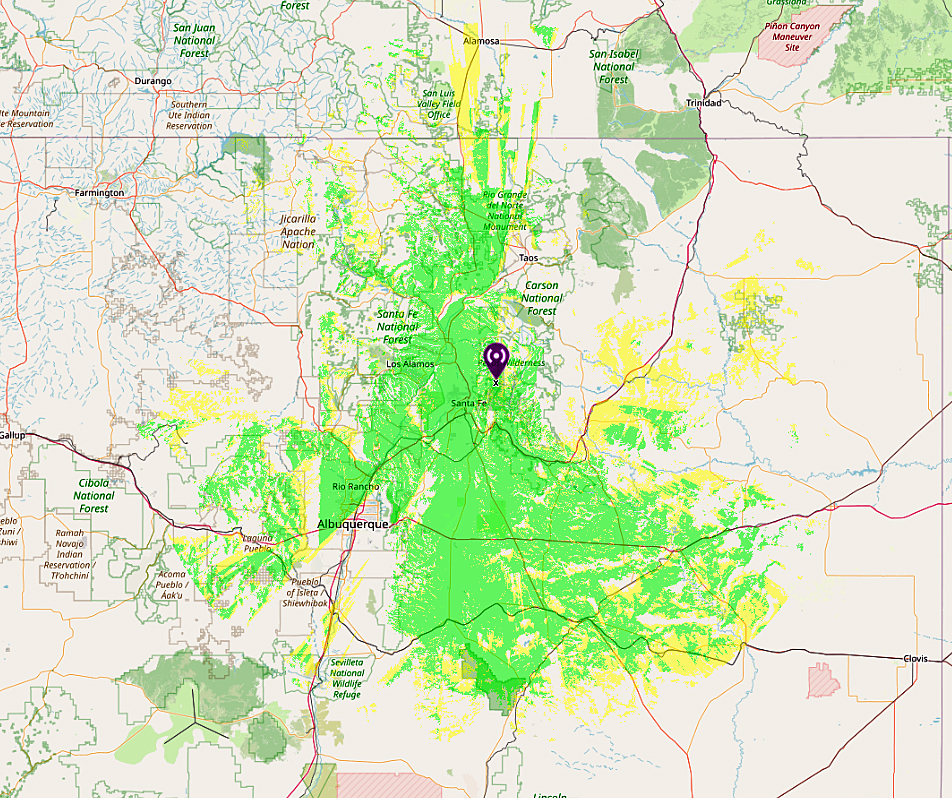

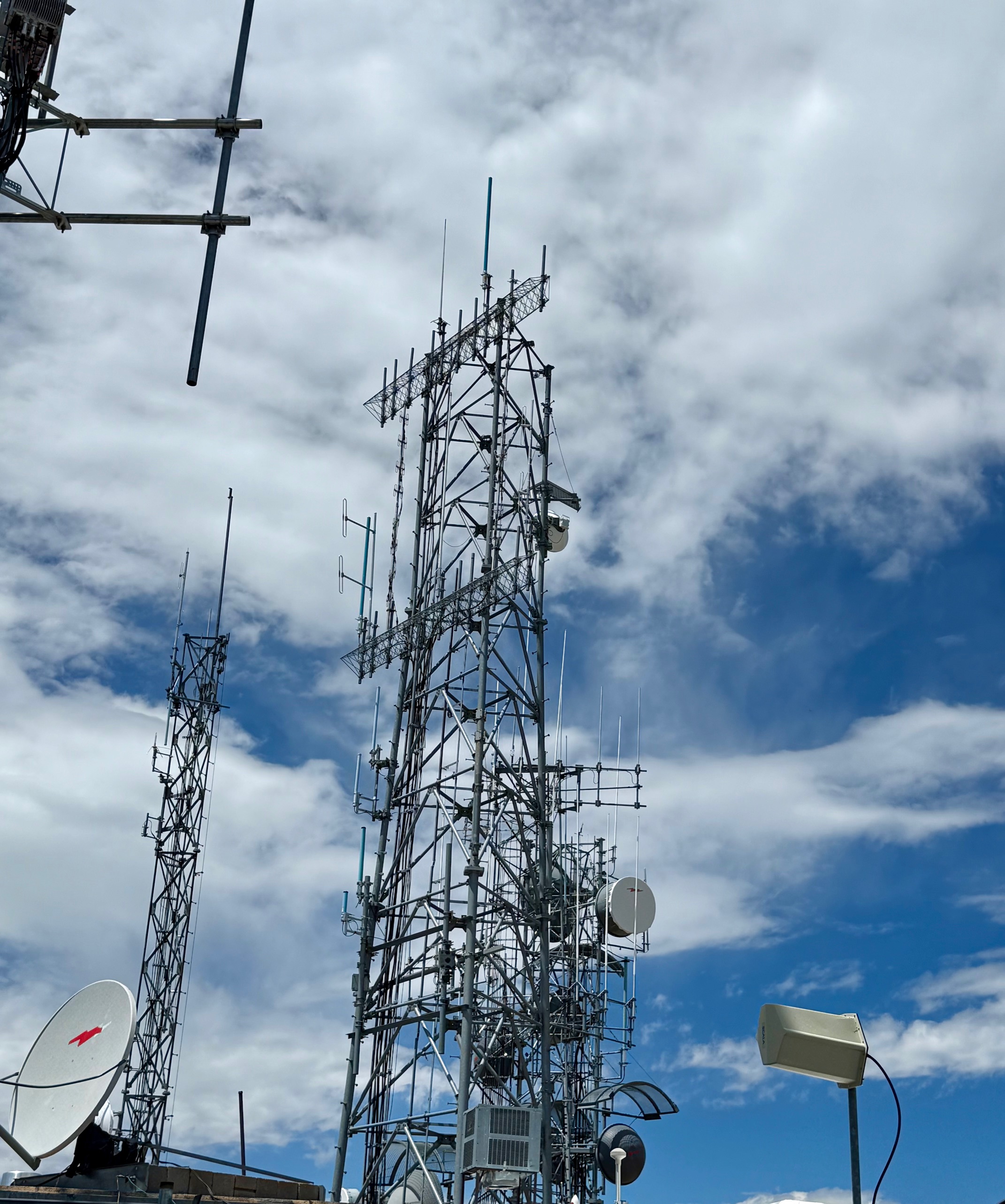

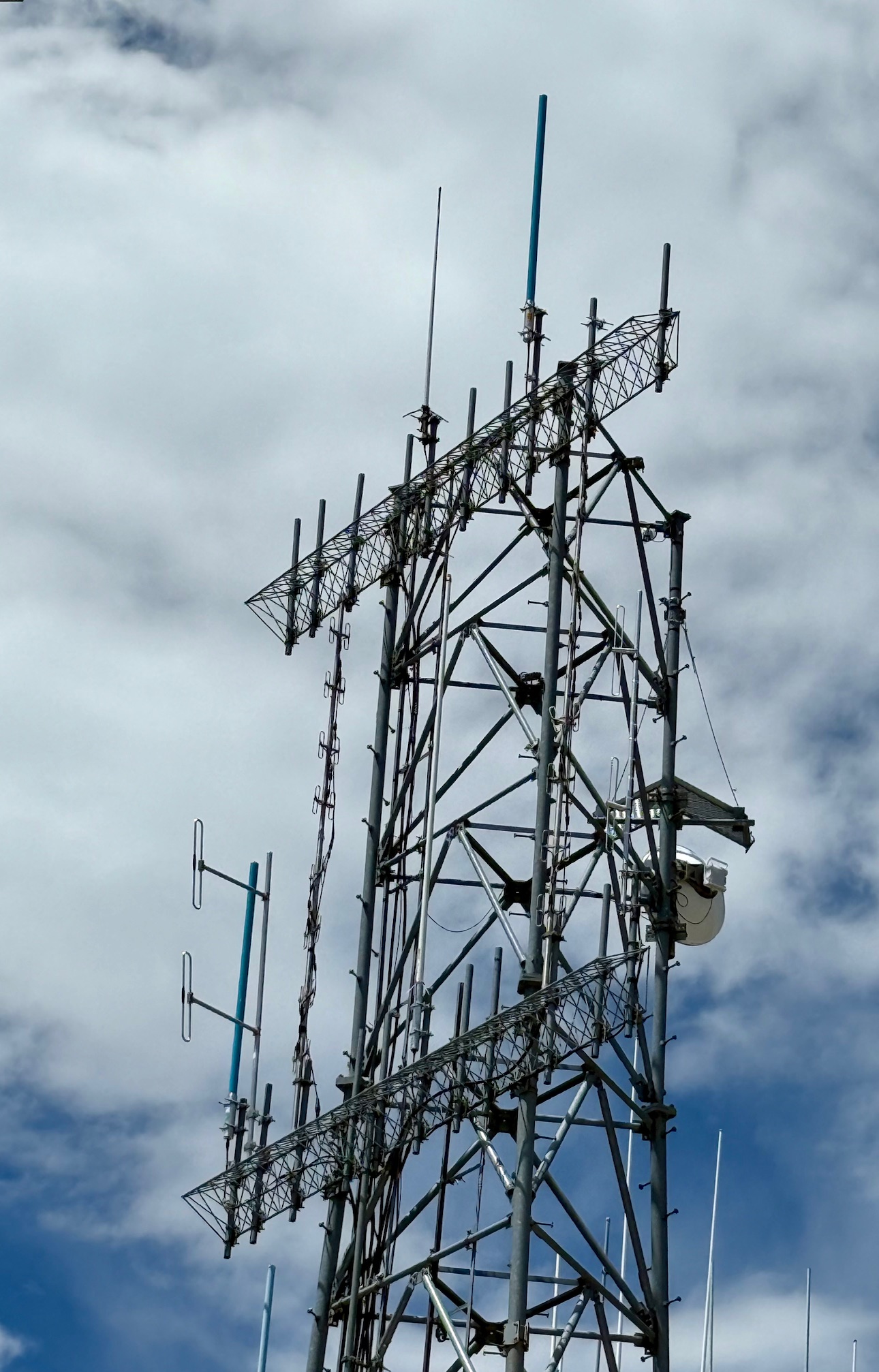

The Tesuque Peak UHF repeater is located at an elevation of 12,100 feet just north of Santa Fe, New Mexico. Coverage is excellent in almost all directions from I25 North and South and I40 East and West. Mobile coverage in Albuquerque, Santa Fe, Los Alamos, Espanola, Las Vegas, Santa Rosa, Edgewood and much more in New Mexico. The antenna is a Celwave PD-1151, omni-directional pattern, with 10db gain on the tower at about 60 feet on the tower. The repeater is a Motorola MTR3000 Digital Mobile Radio(DMR). The site is difficult to get to in the winter, with 8 feet of snow on the ground very common, so reliability is the goal. More information about our Digital repeaters can be found on DMR Montana.

Repeater Location: 35.785013 -105.782060

70 CM Repeater Specifications:

Repeater Receive Frequency (Input): 447.3000 Mhz

Repeater Transmit Frequency (Output): 442.3000 Mhz

Transmit Output Power: 100 Watts

Effective Radiated Power: 400 Watts

Color Code: 1

Static Primary Talk Group Time Slot 2: MPRG 1, Talk Group Number 31301

Static Secondary Talk Groups Time Slot 1: MPRG 2 Talk Group Number 31302, NM Statewide TG# 3135, MPRG Cluster TG# 8

ALL OTHER DYNAMIC TALK GROUPS: TIME SLOT 1 ONLY

Repeater Dashboard: La Mosca Peak UHF Repeater BrandMeister Dashboard

New Mexico DMR Live Map: Live BrandMeister DMR Map
