West Mesa Repeater and Site
The West Mesa (Nine Mile Hill)
UHF repeater is located at an elevation of 5,988 feet on the South side
of I-40 at 9 Mile Hill. Coverage is excellent in all of Albuquerque, Rio
Rancho, Las Lunas and North of Bernalillo. Additionally, there is good coverage
to the West of Laguna on I-40 and East on I-40 into the Canyon east of Albuquerque.
The repeater uses a Decibel Products DB-411 Offset Directional Antenna with
10db gain to the East (Albuquerque) and 5.5 db North and South toward I25
at about 25 feet below the top of the 160 foot tower. The repeater is a
Motorola MTR3000 Digital Mobile Radio(DMR). More information about our Digital
repeaters can be found on DMR
Montana!
Repeater Location: 35.067614
-106.780763
70 CM Repeater Specifications:
Repeater Receive Frequency (Input):
448.5500 Mhz
Repeater Transmit Frequency (Output):
443.5500 Mhz
Transmit Output Power: 100 Watts
Effective Radiated Power: 465 Watts
Color Code: 1
Static Primary Talk Group Time Slot
2: MPRG 1, Talk Group Number 31301
Static Secondary Talk Groups Time Slot
1: MPRG 2 Talk Group Number 31302,
NM Statewide TG# 3135, MPRG Cluster TG# 8, MT Statewide TG# 3130 on Saturday
7-8 PM
ALL OTHER DYNAMIC TALK GROUPS: TIME SLOT 1 ONLY
Repeater Dashboard:
West
Mesa UHF Repeater BrandMeister Dashboard
Call Sign: WR7HLN (Mac Pass Repeater Group)
Antenna Gain: 10 Db
Antenna Pattern: Offset-directional
Backup Power: Generator
Time Out Timer: 3 minutes resets on input signal drop

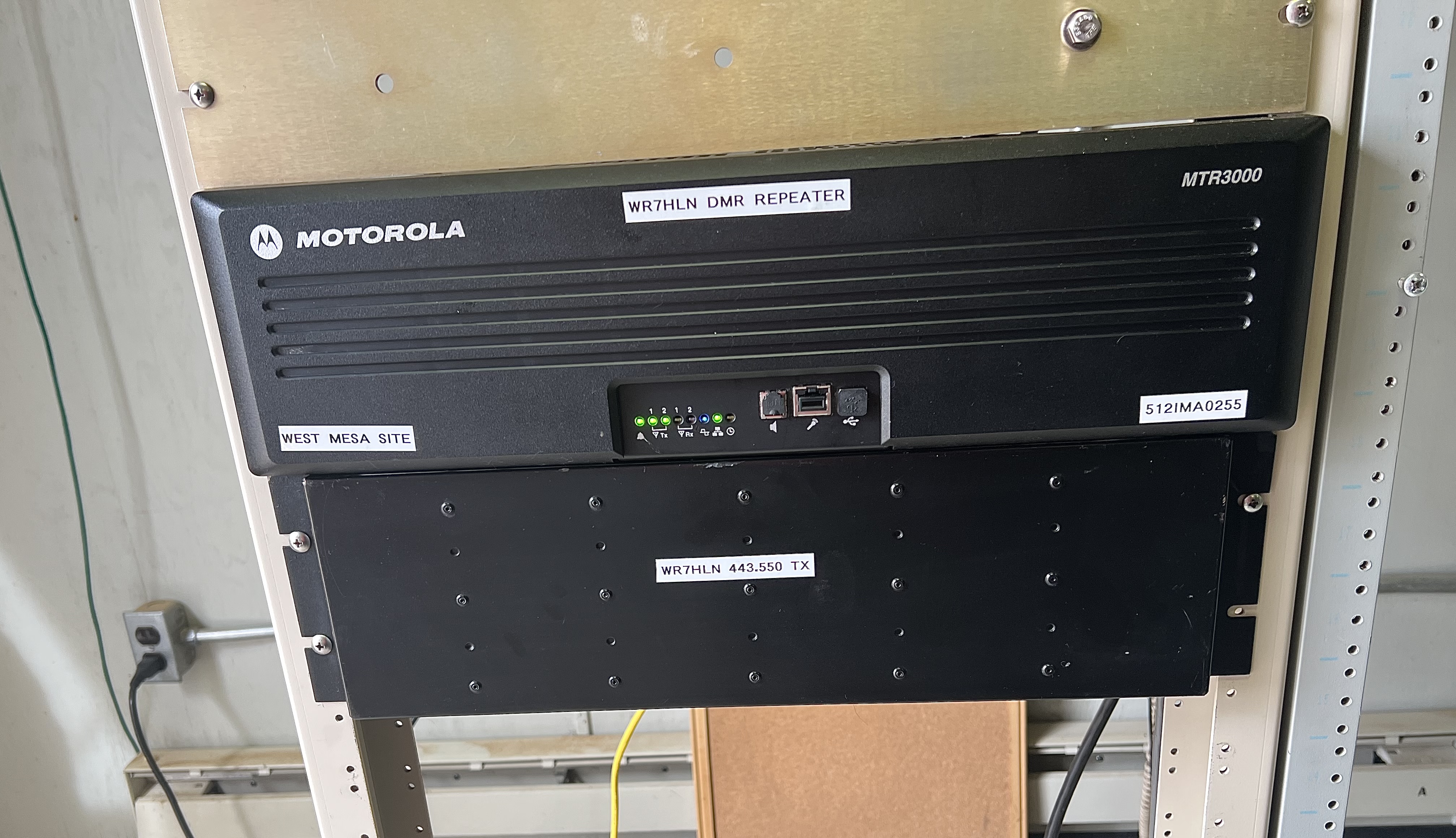

Repeater Photograph

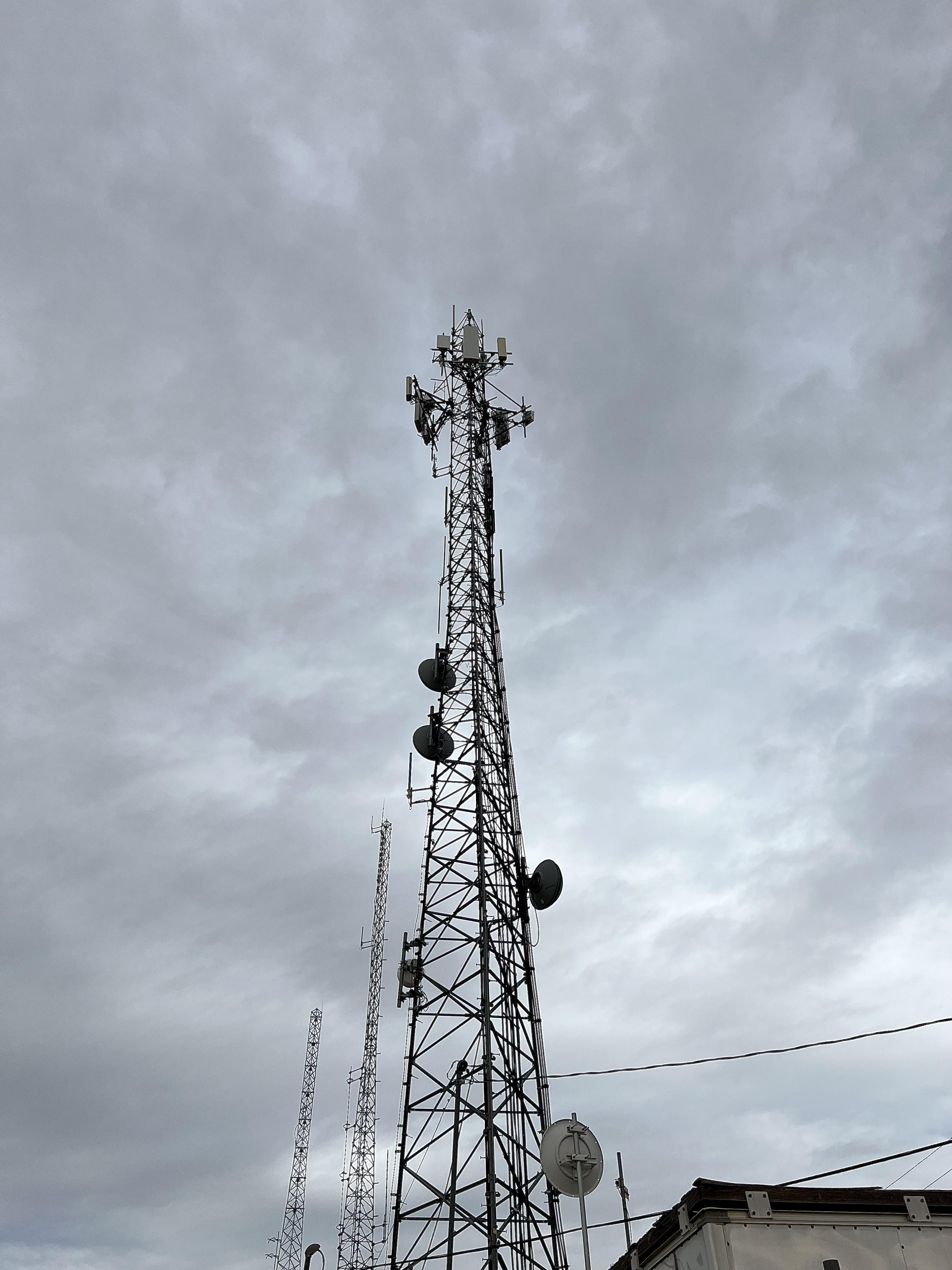

Tower and Antenna Photograph

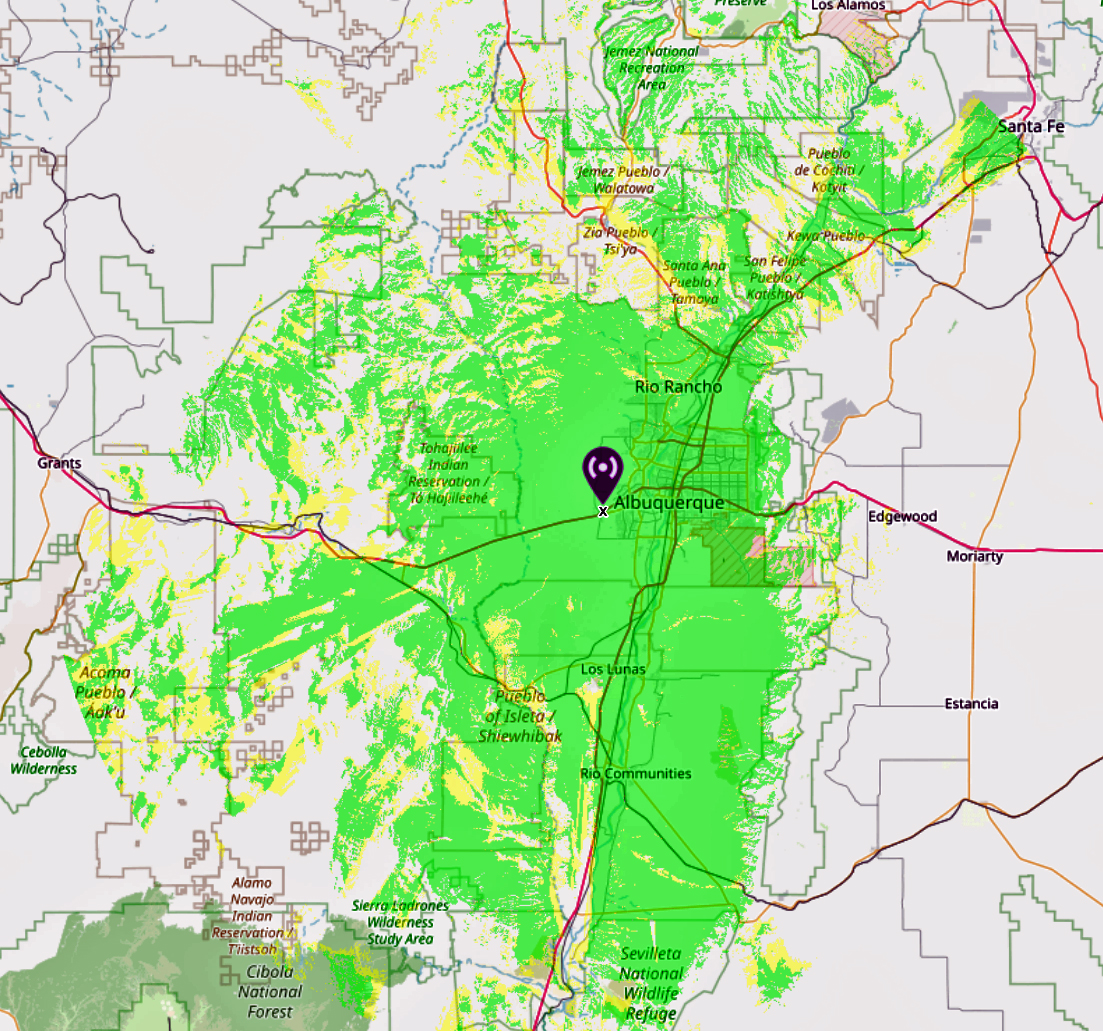

West Mesa Propagation Map
